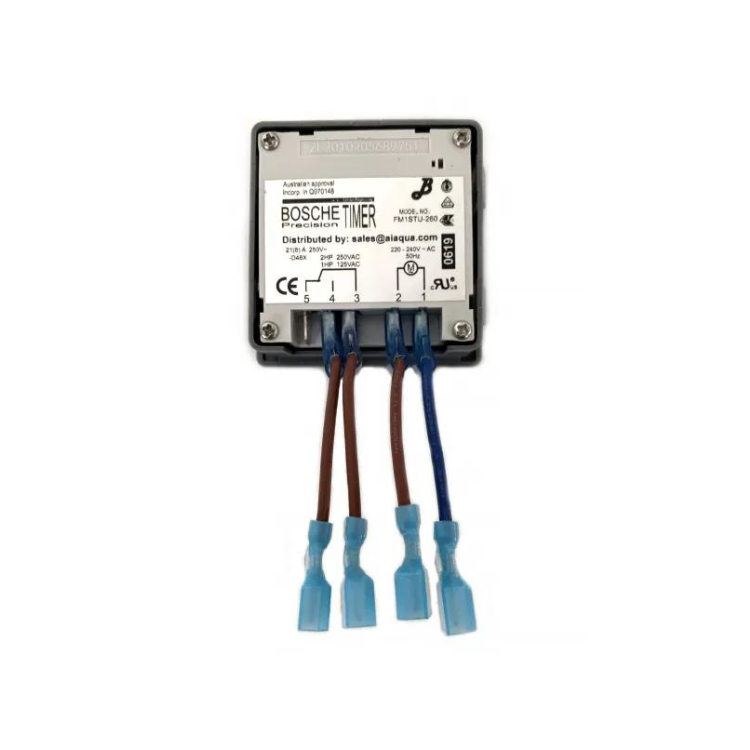

Bosche STD Timer with ATB-72 Adaption Kit
Bosche STD Timer with ATB-72 Adaption Kit
Regular price
$79.00 AUD
Regular price
$80.00 AUD
Sale price
$79.00 AUD
Shipping calculated at checkout.
Quantity
- Free Shipping on orders over $200 within Australia (excludes bulky items)
Couldn't load pickup availability
This is not a battery back-up timer.
This part comes with a 1 year warranty.
Please note - Incorrect installation of this part may void warranty.
Installation Instructions:
- Wire that went to ATB Timer pin L1 connects to BOSCHE Timer Brown lead on pin 4.
- Wire that went to ATB Timer pin L2 connects to BOSCHE Timer Brown lead on pin 3.
- Wire that went to ATB Timer pin S2 connects to BOSCHE Timer Brown lead on pin 2.
- Wire that went to ATB Timer pin S1 connects to BOSCHE Timer Blue lead on pin 1.
Please contact us if you need further advice when installing.
