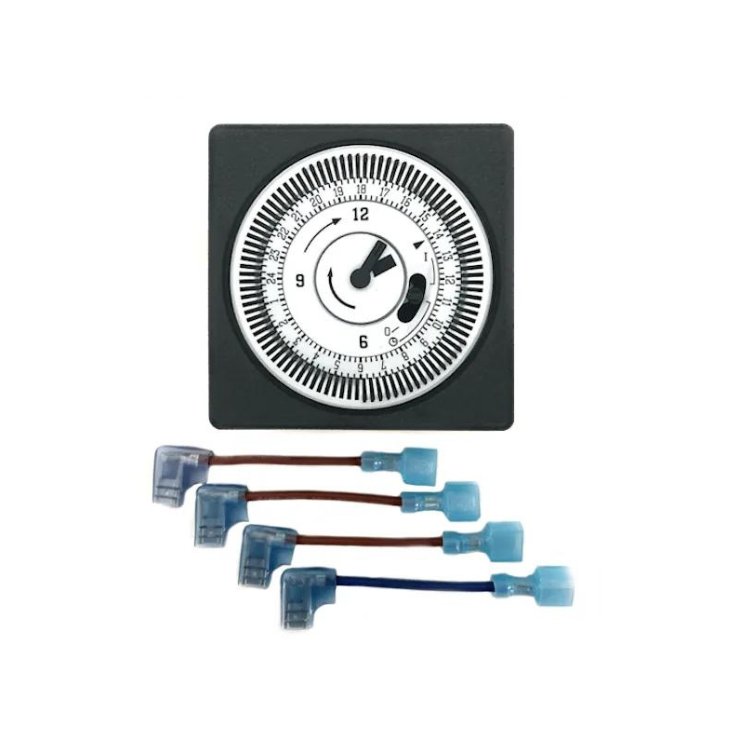

Bosche Battery Back-Up Timer with ATB-72Q Adaption Kit

Bosche Battery Back-Up Timer with ATB-72Q Adaption Kit

$99.00 AUD
$99.00 AUD
Sale Contact Us
Shipping calculated at checkout.
  • Free Shipping on orders over $200 within Australia (excludes bulky items)

This is a battery back-up timer.

This part comes with a 1 year warranty.

Please note - Incorrect installation of this part may void warranty.

Installation Instructions:

  • Wire that went to ATB Timer pin L1 connects to BOSCHE Timer Brown lead on pin 4.
  • Wire that went to ATB Timer pin L2 connects to BOSCHE Timer Brown lead on pin 3.
  • Wire that went to ATB Timer pin S2 connects to BOSCHE Timer Brown lead on pin 2.
  • Wire that went to ATB Timer pin S1 connects to BOSCHE Timer Blue lead on pin 1.

Timer Instructions

Please contact us if you need further advice when installing.
